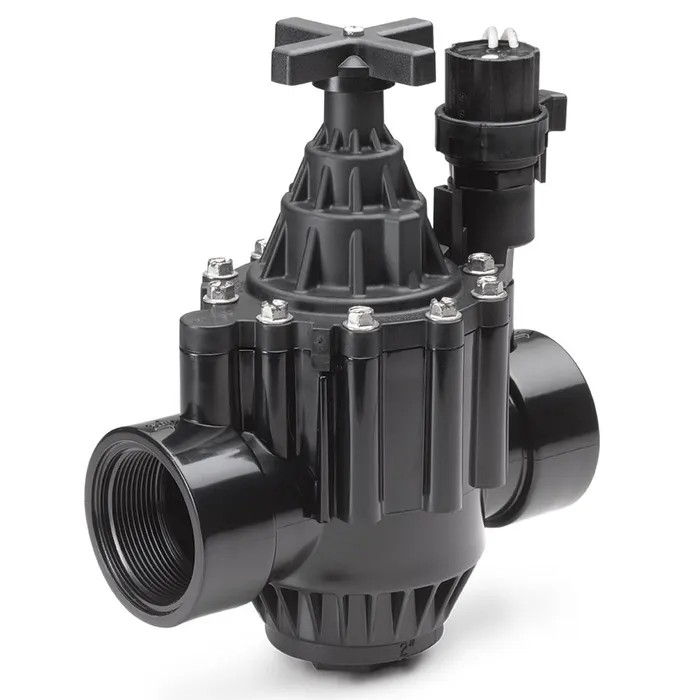

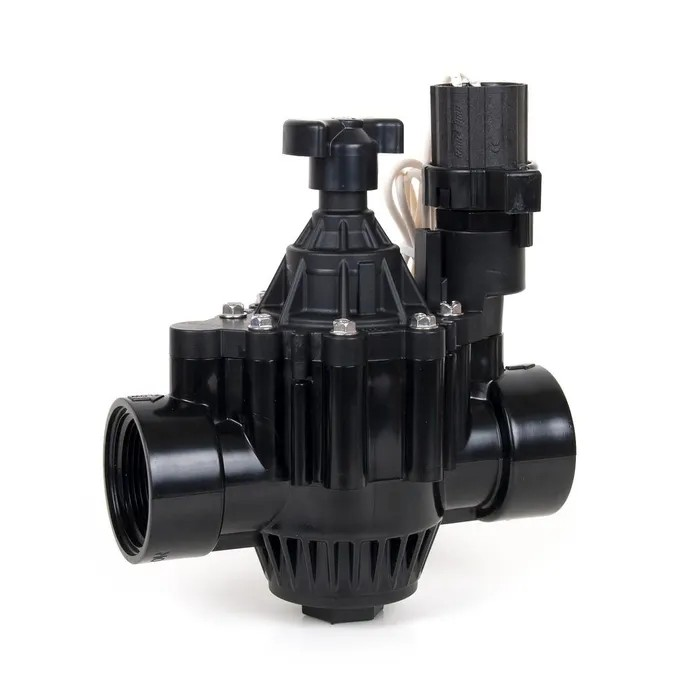

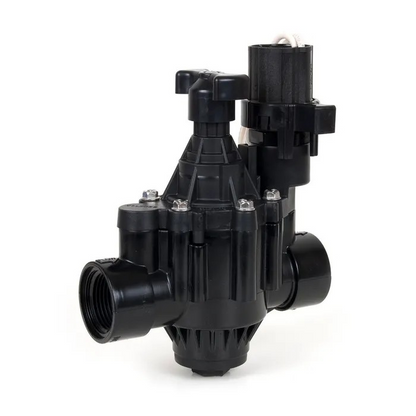

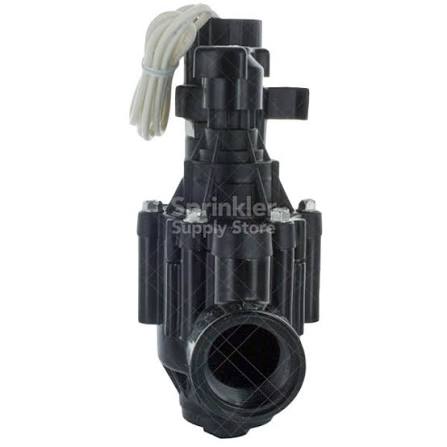

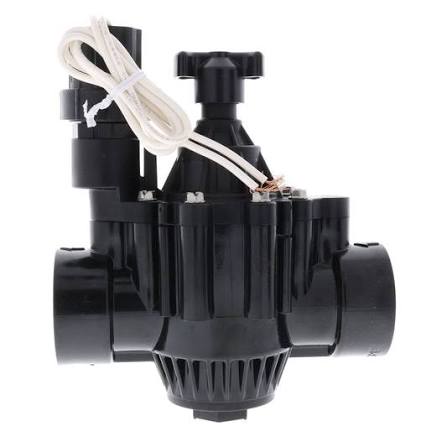

Rain Bird PGA 2" Irrigation Valve 24V – Inline/Angle Electric Control (Plastic)

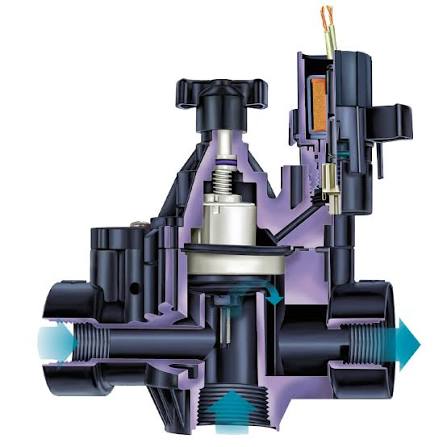

This Rainbird PGA Series valve features a water-tight seal and durable PVC and glass-filled nylon build for reliable use under tough conditions. Its robust electrical design ensures quiet, dependable operation. The valve is normally closed with filtered pilot flow to prevent clogs, and it closes slowly to avoid water hammer and protect your system.

Product Information:The PGA Series offers versatility at an affordable price. Plastic globe/angle valve for residential/light commercial irrigation applications.Options (order separately)Accommodates field installed PRSD pressure regulating module to ensure optimum sprinkler performance. Regulates up to 100 psi (6,90 bar). Purple flow control handles for easy identification of nonpotable water systems. Models: PEBNPHAN1 (1") and PEBNPHAN2 (1 1/2" and 2"). Accepts latching solenoid for use with Rain Bird batteryoperated controllers up to 150 psi (10,35 bar). Features:#149; Globe and angle configuration for flexibility in design and installation#149; Rugged PVC construction for reliable operation#149; Normally closed, forward flow design#149; Doublefiltered pilot flow to resist debris and clogging of solenoid ports#149; Slow closing to prevent water hammer and subsequent system damage#149; Manual internal bleed operates the valve without allowing water into the valve box. Allows pressure regulator to be adjusted without turning the valve on at the controller#149; Onepiece solenoid design with captured plunger and spring for easy servicing. Prevents loss of parts during field service. Specifications:#149; Model: 150PGAOperating Range#149; Pressure: 15 to 150 psi (1,04 to 10,35 bar)#149; PRSD regulates up to 100 psi (6,90 bar)#149; Flow: 2 to 150 gpm (0,45 to 34,05 m/h; 7,8 to 568 l/m)#149; Flow with PRSD option: 5 to 150 GPM (1 to 34 m3/h; 0,32 to 9,44 l/s)#149; Temperature: Up to 110 F (43 C)#149; 24 VAC 50/60 Hz (cycles per second) solenoid power requirement#149; 0.41 A (9.8 VA) inrush current; 0.28 A (6.7 VA) holding current#149; Solenoid coil resistance: 24 Ohms, nominal
